Description:

Ultrasound is low frequency sound and high power that transform electrical energy into mechanical vibrations.

In the solvent form of micro air bubbles that grow up to implode.

The mechanical effects of ultrasound provide a grater penetration of solvent into cellular meterials and improves mass transfer.

There an additional benefit for the use of power ultrasound in extractive processes witch results from the disruption of biological cell walls to facilitate the release of contents.

The sonication increased the efficincy of extraction and producing a purer product in a shorter time



Parameter:

Model/Data	Sono-20-1000	Sono-20-2000	Sono-20-3000	Sono-15-3000
Frequency	20±0.5 KHz	20±0.5 KHz	20±0.5 KHz	15±0.5 KHz
Power	1000W	2000W	3000W	3000W
Voltage	110/220V
Temperature	300℃
Pressure	35 MPa
Intensity of sound	20 W/cm²	40 W/cm²	60 W/cm²	60 W/cm²
Max Capacity	10 L/Min	15 L/Min	20 L/Min	20 L/Min

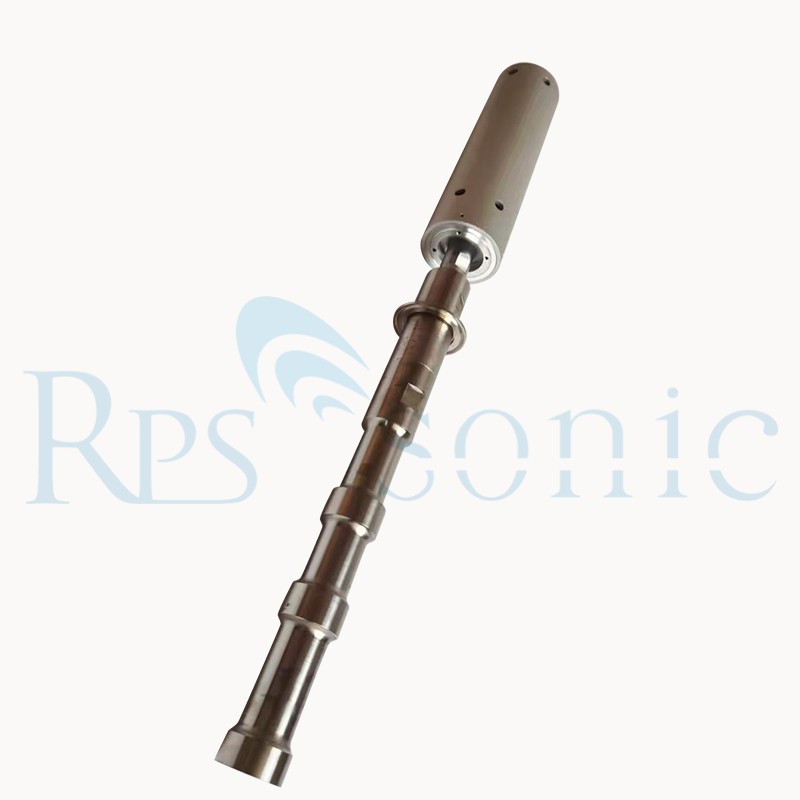

Horn Material	Titanium



Ultrasounds extraction technology advantages

2. Ultrasonic extraction equipment introduction 1. Model classification: Ultrasonic extraction equipment is divided into small test models, pilot test models and mass production models.

(1) Small-scale test model: generally used in laboratories, the ultrasonic power is 1K to 2KW, and the volume of the extraction tank or tank is 5 to 10L.

(2) Pilot test model: generally used for intermediate tests, the pilot test machine adopts a single set of ultrasonic circulation system, the ultrasonic power is 3KW, the volume of the extraction tank is 2.5 to 5L, and the material pump is used to extract the material to a separate ultrasonic treatment tank for processing cycle processing



(3) Large-scale production model: mainly used for mass production of Chinese herbal medicine extraction, but on the basis of the original, multiple sets of high-power ultrasonic waves are combined in series, and the materials entering each tank will be acted on by ultrasonic waves, from each tank One tank enters, and the next tank exits to achieve the treatment effect to increase the processing capacity and processing efficiency.

With a responsible attitude towards customers and products, RPS-SONIC is now vigorously promoting ultrasonic atomization and liquid handling systems. All liquids that are non-corrosive and have little damage to the tool head are free to try. If the liquid is corrosive or physically abrasive, you can try out the ultrasound equipment for only the price of the probe. Help customers test the suitability of ultrasonic waves before mass production and avoid unnecessary losses.
