Introduction of Wide spray ultrasonic atomizer:

ultrasonic spraying system can match the equipment to work, the spray quality is generally stable, the particle diameter size in 25-50μm, compared to traditional spray technology, Ultrasonic coating equipment of ultrasonic spraying system spray uniformity, controllability greatly improved. Eliminating the common defects in the surface of the medical device coating, and providing the technical support for the preparation of the excellent performance of the interventional medical device surface coating.

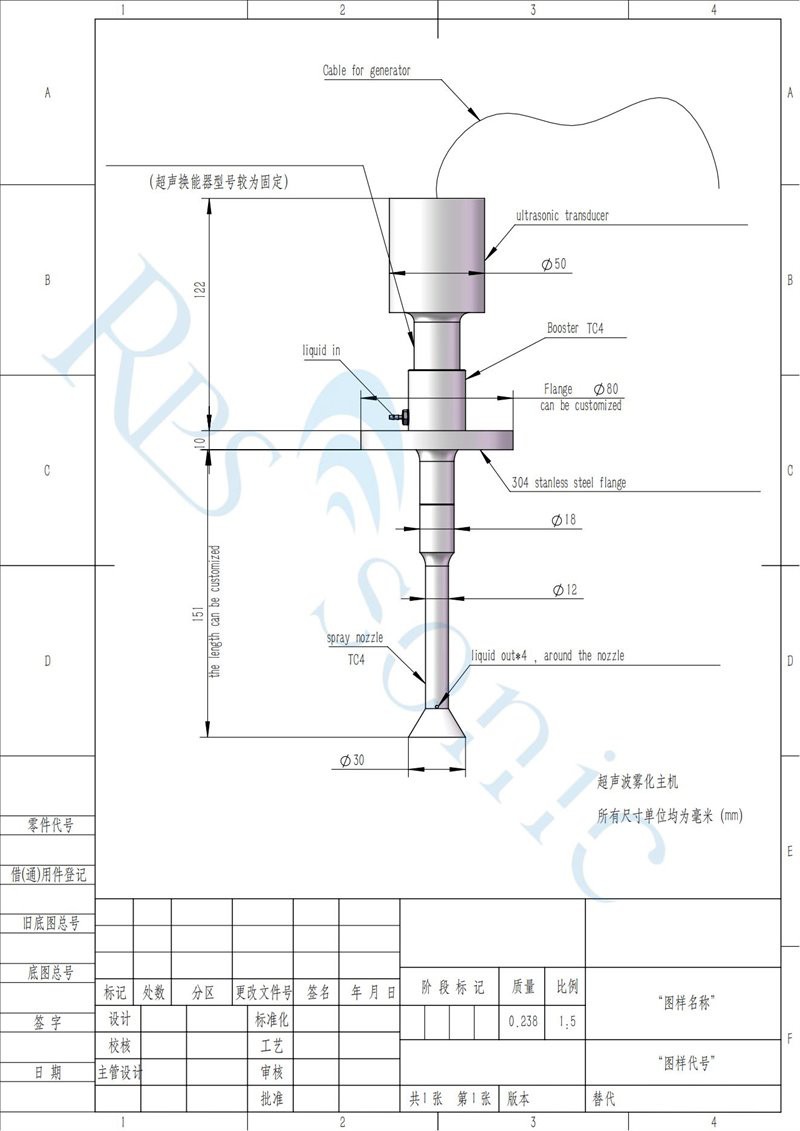

The wide spray ultrasonic atomizer is an ultrasonic atomization nozzle with a wide spraying area. It adopts ultrasonic atomization nozzle technology, and the carrier gas is dispersed and redirected through a special flow channel design, so that the liquid mist after ultrasonic atomization is sprayed in a fan shape, thereby widening the spraying width of the ultrasonic nozzle. Due to the large spray width of the wide spray type ultrasonic nozzle, it is mainly suitable for various medium and large area spraying applications.

The typical application of wide spray ultrasonic atomizer is fuel cell spraying, that is, membrane electrode spraying in proton exchange membrane fuel cells. The catalyst (such as platinum-carbon catalyst) dispersion is ultrasonically atomized and sprayed on the proton exchange membrane to form a uniform and dense membrane electrode. . Another important advantage of the wide-spray ultrasonic nozzle is that it can be combined in multiple groups in parallel to obtain a larger spraying width. In theory, the continuous accumulation of the number of nozzles can achieve any width of spraying range, one 30-group wide-spray ultrasonic The nozzle array of the nozzle can achieve a spraying width of up to 3-4 meters. The nozzle array composed of multiple sets of wide spray ultrasonic atomizing nozzles can be applied to large-area glass spray coating, non-woven fabric and textile spraying, metal plastic sheet, etc., such as AR antireflection coating, heat insulation film coating, Super-hydrophobic coating spraying, flux spraying, etc.

Ultrasonic atomization represents a versatile and reliable technique for the production of protein loaded biodegradable microspheres without inducing a degradation of the polymer matrix. Particle characteristics can be modified by adjusting formulation parameters and atomization conditions in a simple manner.







Ultrasonic spray (atomization) is the use of the energy of ultrasonic energy to break up the water or liquid to form a few m to 100 multi-micron size of small particles. Unlike traditional spray nozzles that rely on pressure and high-speed motion to disintegrate liquid into small particles. And ultrasonic spray heads use liquid ultrasonic atomization with low ultrasonic vibration energy. The liquid can be delivered to the spray head by self-gravity or low-pressure liquid pumps for continuous or intermittent atomization.

Wide-type filling
Spray shape after filling: divergent fan shape
Mainly the use of high-speed impact air jet control, air flow controllable.
• Suitable for spraying non-woven fabrics, glass and other mobile membrane.
• Controllable ultrasonic atomization for uniform coating reduces coating waste.
• Prevents ultrasonic nozzles from clogging and reduces downtime.
